RT-285/URC-11 Hybrid
Philharmonic Radio Corp.; (where?)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Philharmonic Radio Corp.; (where?)
- Year
- 1954 ?
- Category
- Military Transceiver (TRX)
- Radiomuseum.org ID
- 189807

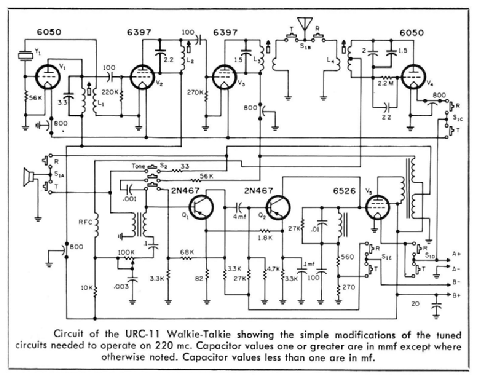

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Number of Transistors
- 2
- Main principle
- Transceiver
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Dry Batteries
- Loudspeaker
- -Loudspeaker incorporated, but system not known.
- Power out
- 0.075 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: RT-285/URC-11 [Hybrid] - Philharmonic Radio Corp.;
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 76 x 100 x 40 mm / 3 x 3.9 x 1.6 inch
- Notes
-
This is the first military survival radio using both tubes and transistors. The operating frequency is 243 MHz only. There is also a tubes only version with the same model number.
- Mentioned in
- Conversion article in CQ mazazine, May 1969, p40
- Literature/Schematics (1)
- Technical Order 33D7-71-6-1
- Author
- Model page created by Tom Warnagiris. See "Data change" for further contributors.
