• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 338999

Click on the schematic thumbnail to request the schematic as a free document.

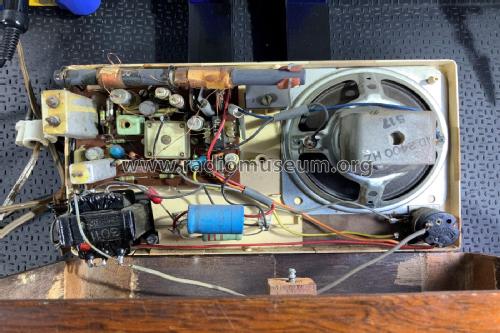

• Number of Transistors
• 5

• Semiconductors
• AF114 AF114 AC126 OC74 OC74 OA79 BY127

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.3 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 06RB065 /00 - Philips do Brasil S.A.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 250 x 177 x 80 mm / 9.8 x 7 x 3.1 inch

• Notes

• Speaker ND 2400 Hz, 25 Ω

  MW 517-1622 kHz



• Net weight (2.2 lb = 1 kg)
• 1.173 kg / 2 lb 9.3 oz (2.584 lb)

• Literature/Schematics (1)
• Revista Eletrônica 36, novembro-dezembro 1969, pg 55 and 56

• Author
• Model page created by Alvaro Georg. See "Data change" for further contributors.
