• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 239536

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 8 inch = 20.3 cm

• Power out
• 20 W (undistorted)

• Material
• Wooden case

• from Radiomuseum.org

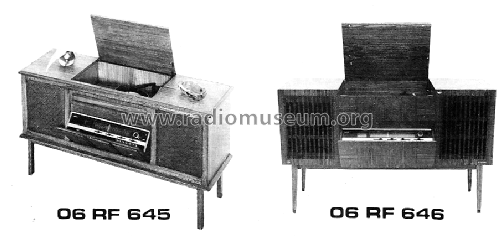

• Model: 06RF645 - Philips do Brasil S.A.

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• Record changer type 06GC047.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.

• Other Models

• Here you find 163 models, 123 with images and 148 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
