06RH749
Philips do Brasil S.A.
- Country
- Brazil
- Manufacturer / Brand
- Philips do Brasil S.A.
- Year
- 1978 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 239836
Source: Service manual
Manufacturer documentation
Source: Service manual

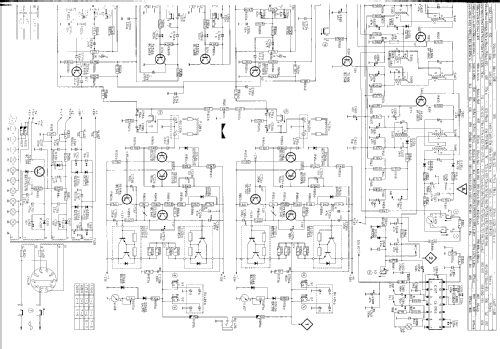

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 44
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 100 W (undistorted)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 06RH749 - Philips do Brasil S.A.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 160 x 305 mm / 19.7 x 6.3 x 12 inch
- Notes
-
Differential of this set in the market at the time was the active circuit for loudness, so a specific big button for loudness control.
The set has wood case with aluminum front panel in two color version: white (/00) and black (/01)
