• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 119470

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 090 90AS090 [mit IC MM5420] - Philips Radios - Deutschland

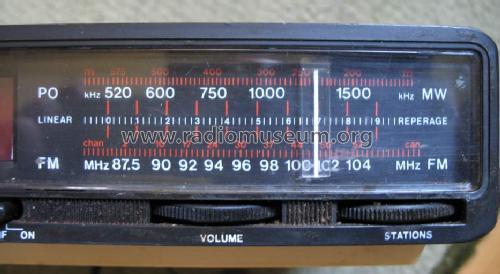

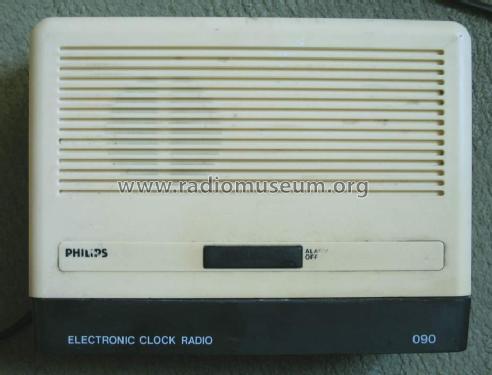

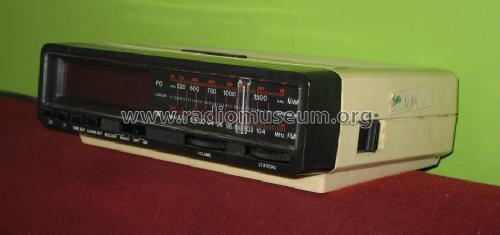

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Dimensions (WHD)
• 200 x 150 x 50 mm / 7.9 x 5.9 x 2 inch

• Notes
• 5 verschiedene Ausführungen:
  /00 = 87,5 - 104 MHz, ZF = 468 kHz
  /01 = 87,5 - 108 MHz, ZF = 455 kHz
  /40 = 87,5 - 104 MHz, ZF = 468 kHz
  /45 = 87.5 - 108 MHz, ZF = 455 kHz
  /60 = für 60 Hz Netzfrequenz, 87,5 - 108 MHz, ZF = 455 kHz.
  Weckfunktion, 7-Segment LED-Anzeige.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
