09RB695
Philips Chilena S.A.
- Country
- Chile
- Manufacturer / Brand
- Philips Chilena S.A.
- Year
- 1969 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 220972

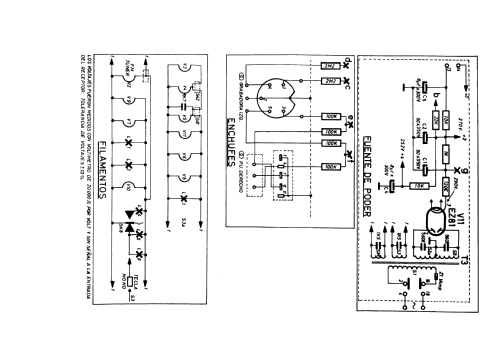

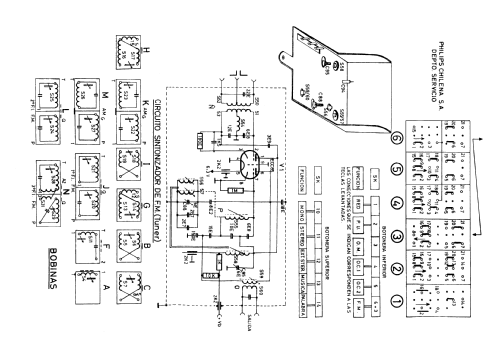

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Wave bands
- Broadcast, 2 Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 200; 220 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 8 inch = 20.3 cm
- Power out
- 10 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 09RB695 - Philips Chilena S.A.
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 595 x 260 x 295 mm / 23.4 x 10.2 x 11.6 inch
- Notes
- Radio Receptor FM Stereo, Onda Media y dos Ondas Cortas. Salida 5 Watts por canal.
Entradas grabadora y tocadiscos. Función Extended Stereo.
FM 87 MHz - 108,5 MHz
Onda Media 517 kHz - 1620 kHz
Onda Corta 1 3,16 MHz - 10 MHz
Onda Corta 2 10 MHz - 26,3 MHz.
This set has a octal socket for plug-in the Stereo Multiplex Decoder Adaptor Philips C4390, see schematics.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
