• Country
• Poland

• Manufacturer / Brand
• Philips - Polskie Zaklady Philips

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 104625

• Number of Tubes
• 3

• Valves / Tubes
• AF7 AL4 AZ1

• Main principle
• TRF with regeneration; 1 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch

• Material
• Wooden case

• from Radiomuseum.org

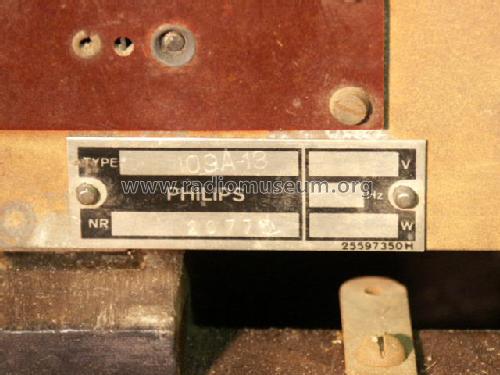

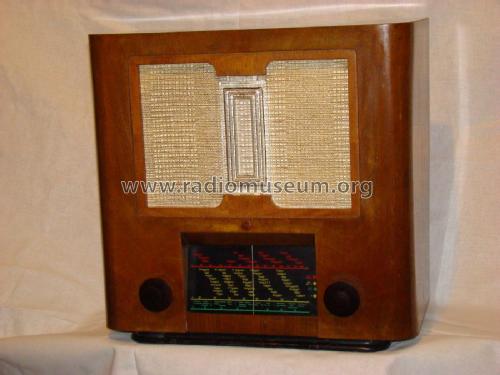

• Model: 109A -13 - Philips - Polskie Zaklady

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 430 x 420 x 200 mm / 16.9 x 16.5 x 7.9 inch

• Notes
• Dreifach Sperrkreis am Eingang, Antennenabstimmung.

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• Zlote Lata Radia, Polen
