Radioplayer 111A
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 263506
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 5 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage

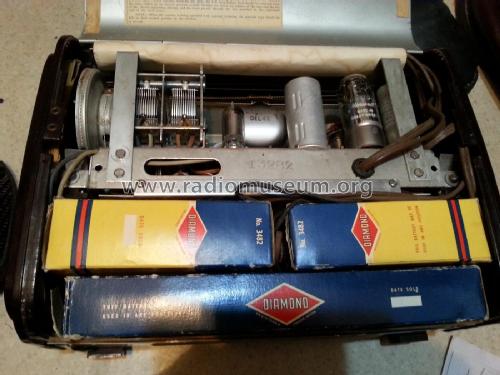

- Dry Batteries / 1.5 & 2 x 45 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Various materials
- from Radiomuseum.org
- Model: Radioplayer 111A - Philips Australia
- Shape
- Portable set > 8 inch (also usable without mains)
- Notes
-
This model differs from the Philips 111 by having a different tuning gang, aerial and oscillator coils, and tuning dial scale. The case design is the same
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Radioplayer Service Data Modification Sheet, March 1952.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
