Radioplayer 117A
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191102
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 2 x 45 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Material
- Bakelite case
- from Radiomuseum.org

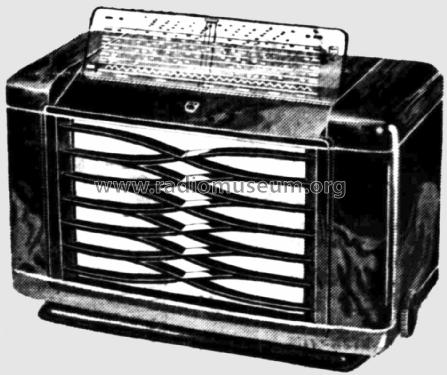

- Model: Radioplayer 117A - Philips Australia
- Shape
- Tablemodel, low profile (big size).
- Notes
-
For 6 volt operation see Vibrator Unit 118. For 32 volt home lighting plant operation see Adaptor Unit 137, which is used in conjunction with Vibrator Unit 118. See also Radioplayer Model 117V, which is sold complete with Vibrator Unit 118.
See also Mullard version, Model MBS1105A.
- Price in first year of sale
- 32.75 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. IX
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Radioplayer Service Data.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 8, 1950, Page 296.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
