• Country
• Great Britain (UK)

• Manufacturer / Brand
• Philips Electrical, Lamps, Industrial - Miniwatt; London

• Year
• 1951

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 162191

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• EF80 EF80 EF80 EF80 EB91 EF80 ECL80 ECL80 PL81 EY51 PY80 EF80 ECL80 EB91 PL82 ECL80 PL82 PY82 PY82 MW31-16

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

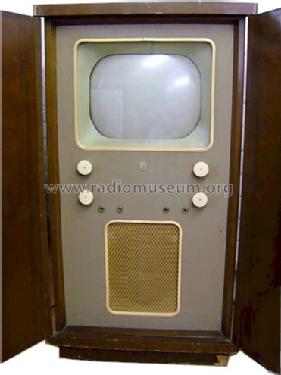

• Model: 1200U - Philips Electrical, Lamps,

• Shape
• Console with any shape - in general

• Notes
• 12 inch 405 lines b/w TV with GB standard VHF Band I tuner, 150 W power consumption, console style with full-length doors, made in GB.

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1043/T25)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
