• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1951 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202085

• Number of Tubes
• 4

• Valves / Tubes
• 6AN7 6N8 6M5 EZ82

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 220-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

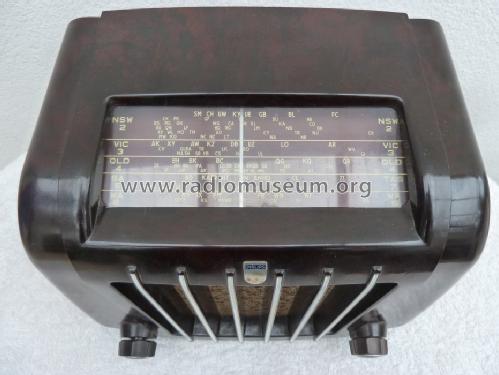

• Model: Jubilee 4 122D - Philips Australia

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 268 x 200 x 180 mm / 10.6 x 7.9 x 7.1 inch

• Notes

• Same as Model 122B, but with a EZ82 rectifier instead of a 6X5GT.

• Literature/Schematics (1)
• - - Manufacturers Literature (Philips Radioplayer Service Data Modification Sheet.)

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
