Radioplayer 125
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1951–1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192022

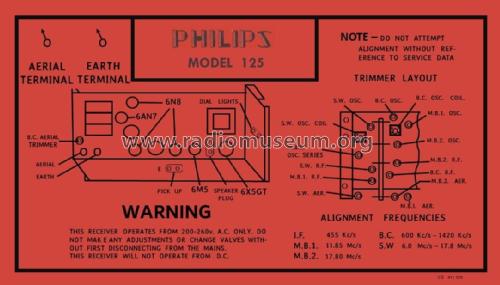

RECONSTRUCTED LABEL
Philips Radio player model 125

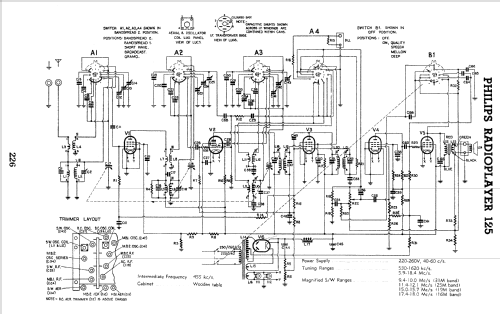

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 220-240; 250-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Radioplayer 125 - Philips Australia
- Shape
- Tablemodel, low profile (big size).
- Notes
-
This model covers 530 to 1620 kHz and 5.9 to 18.4 MHz. In addition there is bandspread for the 31, 25, 19 and 16 metre bands.
See also Mullard version, Model MAS1154.
- Price in first year of sale
- 77.85 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. X
- Mentioned in
- Mingay's Price Service (May 1952 to May 1956.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Radioplayer Service Data.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 225.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
