12 Band World Receiver AE3350 /00
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 1994 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 273264
Picture of front of radio
Over view Of radio

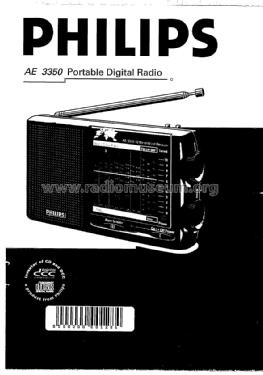

Picture 1 of 4 user manual
Picture 2 of 4 user manual
Picture 3 of 4 user manual
Picture 4 of 4 user manual
Picture of back of radio
Picture, next, of back of radio
The next picture of this nice small radio
Philips advertizing for this radio.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / AA: 2 x 1.5 / 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
- Power out
- 0.38 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 12 Band World Receiver AE3350 /00 - Philips 飞利浦; China
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 157 x 91 x 38 mm / 6.2 x 3.6 x 1.5 inch
- Notes
-
9 Kurzwellenbereiche.
- Net weight (2.2 lb = 1 kg)
- 0.340 kg / 0 lb 12 oz (0.749 lb)
- Source of data
- -- Original prospect or advert
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Fred Overbeek. See "Data change" for further contributors.
