12-Band World Receiver D1875 /00X
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 1988 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 346409

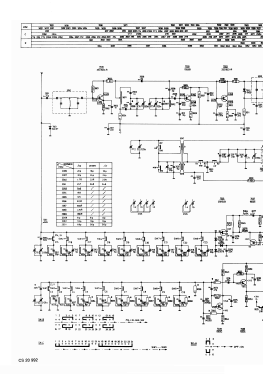

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Semiconductors
- 2SC1923 1502B 2SC1923 2SK54 1602E 1402E 1502C 1502C 2SC941 1602E 1402E 1602E µPC1018 BA526
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
- Power type and voltage
- Batteries / addl. power jack / 4 × 1,5 / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.6 cm = 3 inch
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 12-Band World Receiver D1875 /00X - Philips 飞利浦; China
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 178 x 114 x 38 mm / 7 x 4.5 x 1.5 inch
- Notes
-
Wavebands:
FM: 87.5 - 108 MHz
LW: 150 - 255 kHz
MW: 525-1606 kHz
SW1: 50 - 48 m
SW2: 43 - 41 m
SW3: 32 - 30 m
SW4: 26 - 23 m
SW5: 22 - 21 m
SW6: 20 - 19 m
SW7: 17 - 16.5 m
SW8: 14 - 13.5 m
SW9: 11.8 - 11.4 m.
- Net weight (2.2 lb = 1 kg)
- 0.550 kg / 1 lb 3.4 oz (1.211 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
