Radioplayer 131
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 192706

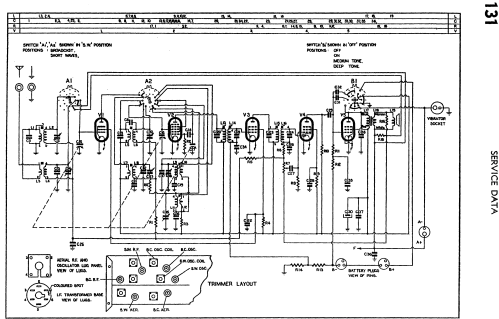

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Dry Batteries / 2 x 45 & 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Radioplayer 131 - Philips Australia
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Same cabinet as Radioplayer Model 123 (Jubilee 5).
See also Mullard version, Model MBS1112.
- Price in first year of sale
- 44.45 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. XI
- Mentioned in
- -- Original prospect or advert (The Australian Women's Weekly 5 Dec 1951 Page 2.)
- Literature/Schematics (1)

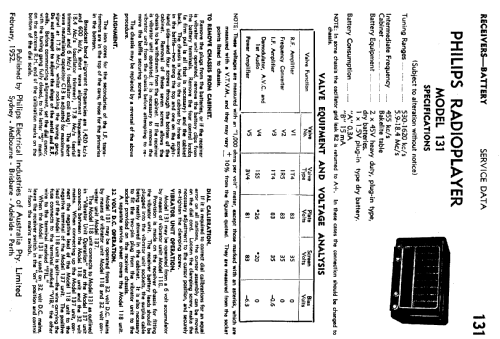

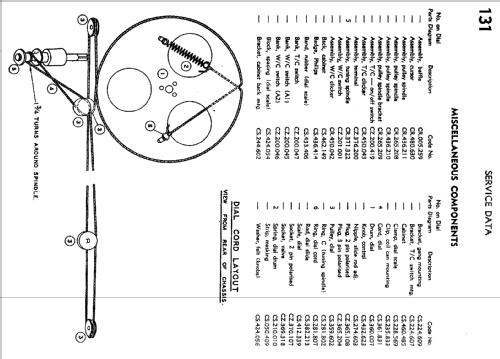

- - - Manufacturers Literature (Philips Radioplayer Service Data.)
- Literature/Schematics (2)
- Australian Official Radio Service Manual AORSM (Volume 11, 1953, Page 251.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
