• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192685

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6N8 6AN7 6N8 6N8 6M5 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 220-240; 250-260 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: 140K - Philips Australia

• Shape
• Tablemodel, with any shape - general.

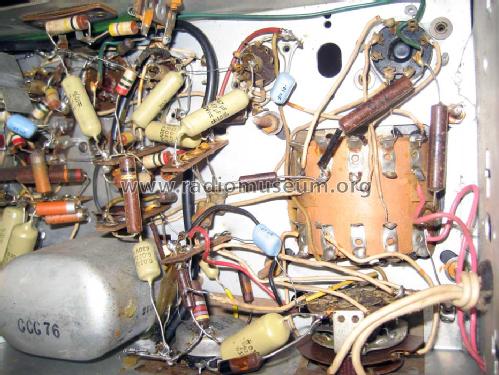

• Notes

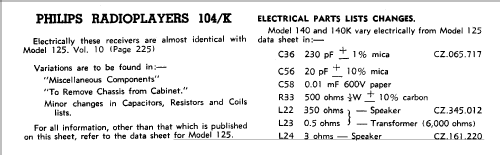

• This model covers 530 to 1620 kHz and 5.9 to 18.4 MHz. In addition there is bandspread for the 31, 25, 19 and 16 metre bands. The circuit reference is for the model 125 which is similar. The differences (electrically) between the 125 and the 140K are detailed in the AORSM vol.11 P261. Note that the AORSM vol.11 erroneously refers to this model as the 104K.

• Circuit diagram reference
• Australian Official Radio Service Manual Vol. X

• Author
• Model page created by Stuart Irwin. See "Data change" for further contributors.
