• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 119718

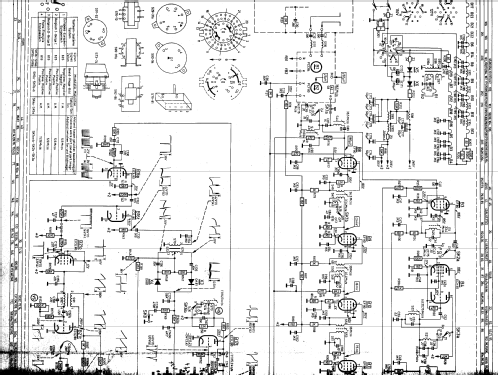

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 EF80 ECH81 EF80 PABC80 PL82 EF80 EF80 EF80 EF80 PL83 EF80 ECC82 ECL80 ECL80 PL81 PY81 DY86 ECL80 PL82 MW36-44

• Main principle
• Superheterodyne (common); ZF/IF - kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 14TX112A-02 - Philips; Eindhoven tubes

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• 14"/36 cm b/w TV with VHF band I /III drum tuner, four standard CCIR/French/Belgium 625/819 lines version,jacks for ext. speaker.
  Loudspeaker type 9766FM.
  Although schematic designates image tube as B23 there are only 22 valves (B15 missing).
  Image tube designated as MW43-69 on schematic is not correct - should be according to model-type since the chassis serves in different models with different image tube sizes.(see tubelist)


• Net weight (2.2 lb = 1 kg)
• 25 kg / 55 lb 1.1 oz (55.066 lb)

• Source of data
• -- Schematic

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.
