• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 176390

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• BF494 BF494 BF494 BF494 BF494 BF494 BC548 BC558 AC127 AC128 BC548 BA216 BA216 BA216 BA216 AA119 AA119 AA119 AA119

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

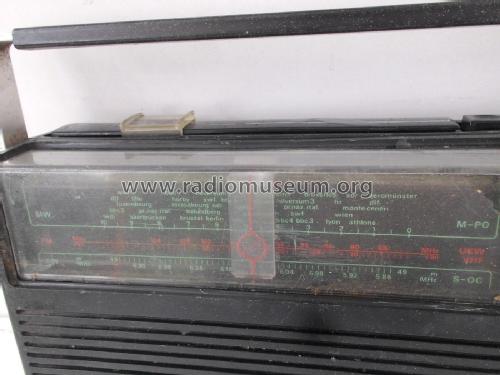

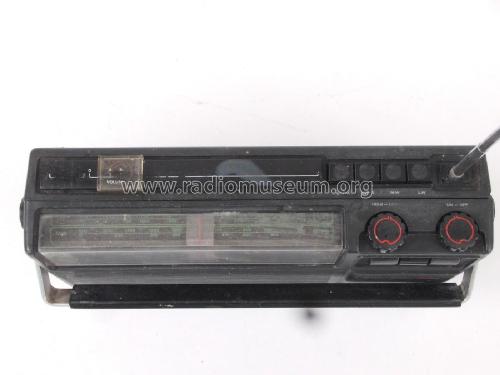

• Model: 1650 /00 /13 /14 /15 /16 /22 /30 /33 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• No information about the differences between these models.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Jose Casas-Avalos. See "Data change" for further contributors.
