Quintet 165B
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1956/1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 263701
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Quintet 165B - Philips Australia
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Notes
-
This model differs from Philips Model 165A in having different I.F. transformers.

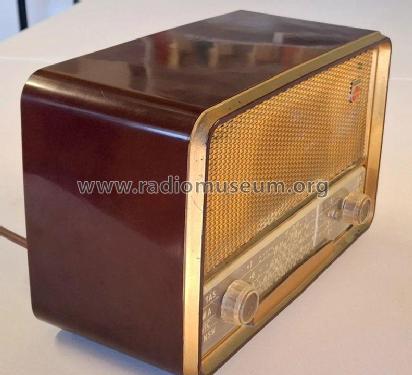

Colours available in Blue, Green, Burgundy, Walnut & Ivory.
See also Quintet Model 165 and Fleetwood Model 1061B.
- Price in first year of sale
- 25.20 AUS £
- Mentioned in
- Mingay's Price Service (Nov 1956 & May 1957.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Radioplayer Modification Sheets for Models 165/A:/B., July 1957.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol.1, 1963, Page P21.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
