• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1955

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 128544

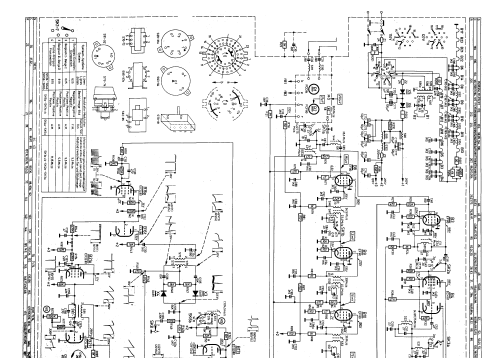

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCC84 PCF80 EF80 ECH81 EF80 PABC80 PL82 EF80 EF80 EF80 EF80 PL83 EF80 ECC82 ECL80 ECL80 PL81 PY81 DY86 ECL80 PL82 MW43-69

• Main principle
• Superheterodyne (common); ZF/IF - kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 17TX100A-72 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 550 x 480 x 530 mm / 21.7 x 18.9 x 20.9 inch

• Notes
• 17" 43cm four standard b/w TV, VHF tuner with CCIR B channels 2 - 11; French channel F8+8a (Paris/Lille) + one reserve channel. Covers CCIR 625, belgium 625, belgium 819 and french 819 transmission standards.
  Loudspeaker type 9766FM.
  Although schematic designates image tube as B23 there are only 22 valves (B15 missing).


• Net weight (2.2 lb = 1 kg)
• 35 kg / 77 lb 1.5 oz (77.093 lb)

• Price in first year of sale
• 1,195.00 NLG

• Source of data
• -- Schematic

• Author
• Model page created by a member from A. See "Data change" for further contributors.

• Other Models

• Here you find 5244 models, 4386 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
