17B521 Ch= E1
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1973–1975
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 271894
-
- Brand: Deutsche Philips-Ges.

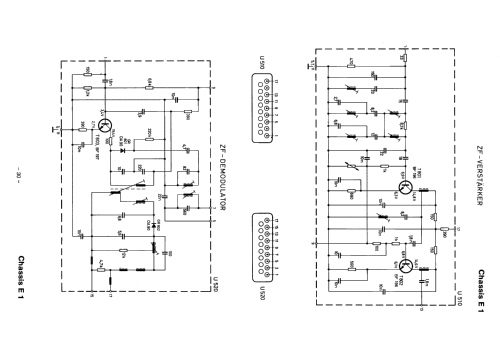

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- A44-120W
- Number of Transistors
- 22
- Semiconductors
- AF367 BC157 BC337 BD226 BD136 2N3055 BSS38 BC328 BF336 BU205 BD135 BF337 BF196 BF197 BR101 BY179 BAV21 BZX79 BA148 TAA550 1N4148 BB105 OA90 TBA750 TBA900 TBA720
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: 17B521 Ch= E1 - Philips Radios - Deutschland
- Notes
-
Each semiconductor listed once.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
