17TI111A /03
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1959 ?
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 330169
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 22
- Valves / Tubes
- PCC84 PCF80 ECH81 EF80 EF80 EF80 EF80 EF80 PCF80 PCF80 PABC80 PL81 PL82 EF80 PL83 PL82 PCF80 PY81 DY86 PY82 PY82 MW43-69
- Main principle
- Superhet with RF-stage
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 1.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17TI111A /03 - Philips Italy; Milano MI
- Shape
- Tablemodel, low profile (big size).
- Notes
-
17" B/N TV

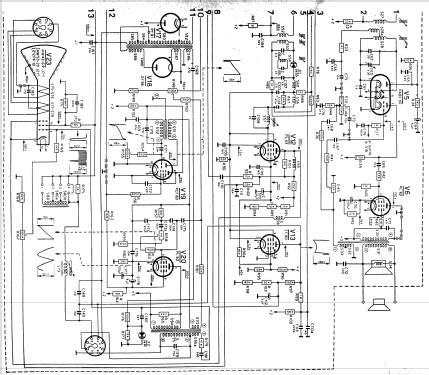

There is a typo in schematic writing 17T1 (21T1) instead of 17TI (21TI)
- Mentioned in
- Revista Española de Electrónica (REDE) nº 71 Octubre 1960
- Literature/Schematics (1)
- -- Schematic
- Literature/Schematics (2)
- -- Schematic (Schemario TV Philips Service, Edizioni CELI 1972.)
- Author
- Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
