17TT108/01
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 215989
- Number of Tubes
- 19
- Valves / Tubes
- 6CW7 6BL8 6BX6 6BX6 6BX6 6CK6 6BX6 6BX6 6BM8 6BL8 6BL8 6BM8 6BL8 6CM5 6R3 1S2 6N3 6N3 MW43-69
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 190; 215; 240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: 17TT108/01 - Philips Australia
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 20.5 x 20 x 19 inch / 521 x 508 x 483 mm
- Notes
-
"Models 17TT108 & 17TT108/01 differ in respect of grille cloth colour only".
43 cm television tunes the 10 then standard Australian VHF channels. The height does not include the legs.
Cabinet finishes available in Maple & Rose Mahogany.
- Net weight (2.2 lb = 1 kg)
- 85 lb 0 oz (85 lb) / 38.590 kg
- Price in first year of sale
- 177.45 AUS £
- Literature/Schematics (1)

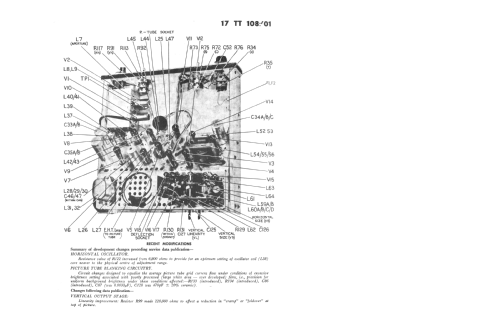

- - - Manufacturers Literature (Philips Service Data for Models 17TT108 & 17TT108/01.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & Vol. 2, 1967, Page P3.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
