• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 98947

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes
• PCC84 PCF80 EF80 ECH81 PABC80 PL82 PL83 ECC82 ECL80 PL81 PY81 DY86 MW43-69

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 17TX100 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 565 x 485 mm / 21.3 x 22.2 x 19.1 inch

• Notes
• 4 Normen (CCIR, französische, 2 belgische), 625 und 819 Zeilen, Kanäle E2 bis E11 und F8 und 8a. Normenumschalter mechanisch per Drehschalter.

• Mentioned in

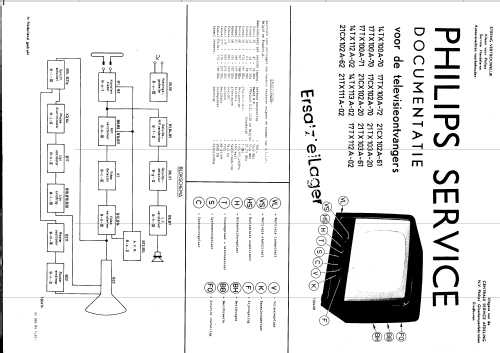

• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
