• Country
• Australia

• Manufacturer / Brand
• Philips Australia

• Year
• 1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 202262

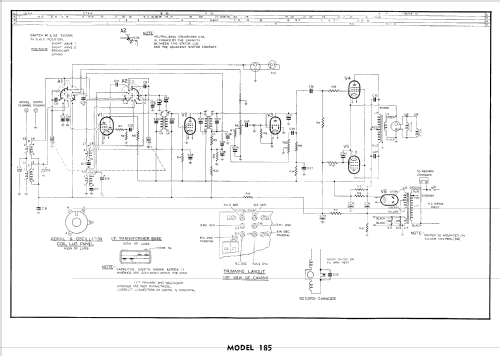

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6AN7 6BH5 6BD7 6M5 6M5 6V4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Phil-Harmonic 185 - Philips Australia

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 950 x 755 x 440 mm / 37.4 x 29.7 x 17.3 inch

• Notes

• Philips 185;
  SW1: 9.65 - 17.8 MHz,
  SW2: 4.825 - 8.9 MHz, 3 speed record changer, Australian scale.

  The changer is a Philips type AG1003.

  See also Fleetwood model 5001A.

  Cabinet finishes available in Walnut, Rosewood & Rose Mahogany.

• Price in first year of sale
• 124.95 AUS £

• Literature/Schematics (1)
• - - Manufacturers Literature (Philips Radioplayer Service Data for Models 185, A, B & C.)

• Literature/Schematics (2)
• J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P34.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
