Phil-Harmonic 185B
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1958
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 266250

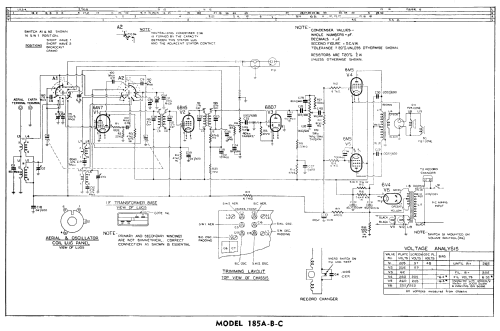

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: Phil-Harmonic 185B - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-
This radiogram uses a Philips type NG1011 record changer.
See also Fleetwood model 5001A/02.
Cabinet finishes available in Walnut, Rosewood & Rose Mahogany.
- Price in first year of sale
- 124.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Radioplayer Service Data for Models 185, A, B & C.)
- Literature/Schematics (2)
- J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page P33.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
