19RB244 /00 /22

• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1974 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108887

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• BF194 BF495 BF194 BF194 TBA120 TAA611

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     8 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 1.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

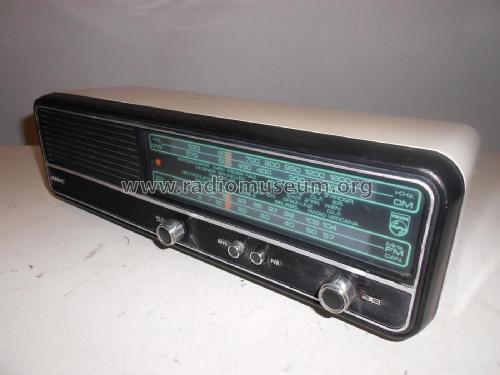

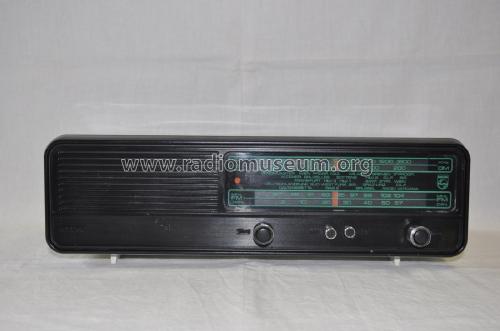

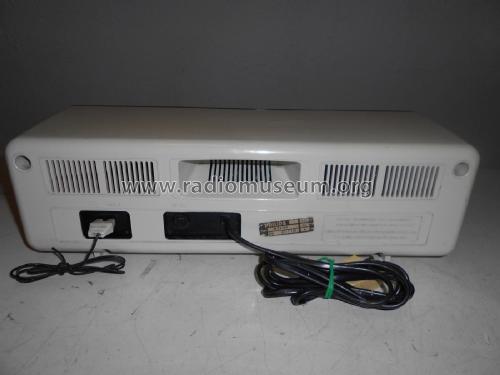

• Model: 19RB244 /00 /22 - Philips Italy; Milano MI

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 385 x 120 x 140 mm / 15.2 x 4.7 x 5.5 inch

• Notes

• 2 Piezo-Filter (ceramic resonator) für FM-ZF 10,7 MHz.

  controllo volume - antenna interna in ferrite per MW - presa antenna esterna a filo per FM - presa per registratore - maniglia di trasporto.

• Net weight (2.2 lb = 1 kg)
• 1.1 kg / 2 lb 6.8 oz (2.423 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (4)
• -- Schematic

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
