• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1963/1964

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 166048

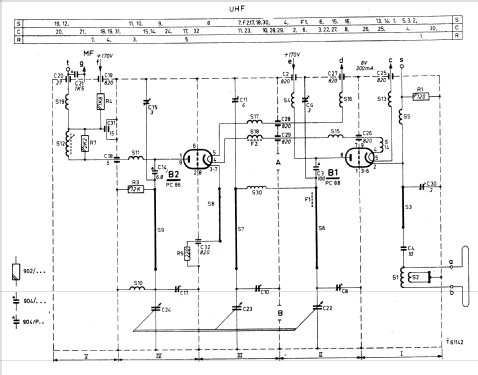

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 22

• Valves / Tubes
• PCF80 PCF80 PCL86 PCL85 PC86 PC86 PCC189 PCF86 EF183 EF184 EF184 PCL84 ECH84 ECH84 PCF802 PL500 PY88 DY87 PCF80 PF86 PCL85 AW47-91

• Number of Transistors

• Semiconductors
• BA100 BA100 BA100 OA81 OA81 OA81 OA81 OA81 OA70 BY100

• Main principle
• Superheterodyne (common); ZF/IF 38900/5500 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org

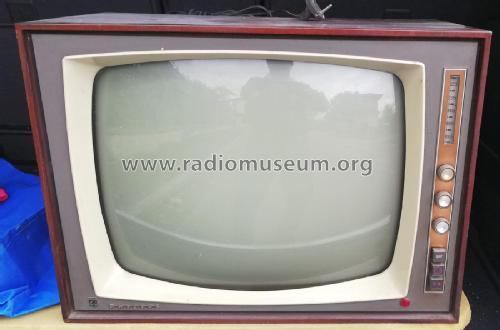

• Model: 19TX391A /38 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 540 x 400 x 350 mm / 21.3 x 15.7 x 13.8 inch

• Notes

• Empfangsbereich
  VHF: Kanäle A - H
  UHF: 470 - 862 MHz

  Tubes snd semiconductors listed as in the service instructions.

• Literature/Schematics (1)
• Schematic

• Literature/Schematics (2)
• -- Schematic (“Schemario TV Philips Service”, CELI Editor, Italy 1972.)

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.

• Other Models

• Here you find 5244 models, 4386 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
