19TX421A /00

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1965 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 204703

• Picture

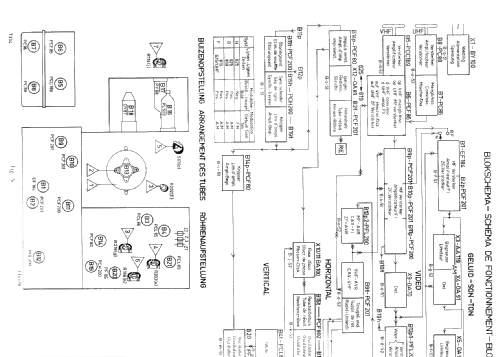

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• EF184 PCF201 PCL86 PCL85 PCC189 PCF86 PC86 PC88 PCF201 PCF201 PCF200 PFL200 PCF80 PCF802 PL500 PY88 DY87 PCH200 PF86 PCL85 A47-11W

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: 19TX421A /00 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 590 x 410 x 340 mm / 23.2 x 16.1 x 13.4 inch

• Notes
• • Transformerless audio output stage.
  • 5 standard receiver:
    • European 625 lines; FM sound; negative video sync.
    • Belgian 625 lines; AM sound; positive video sync.
    • Belgian 819 lines; AM sound; positive video sync.
    • French 819 lines; AM sound; positive video sync.
    • French UHF 625 lines; AM sound; positive video sync.
  • Type of loudspeaker: 1 x AD3729AM.
  • VHF channels: E2-E11; F6; F8a. (tuner type A3-271-25)
  • UHF 470-862 MHz.(tuner type A3-263-77)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)
• Service Manual

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
