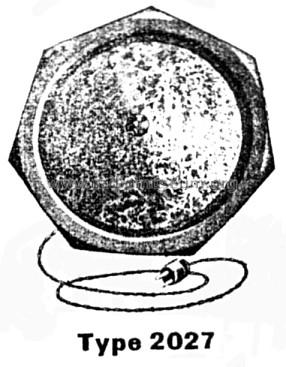

Konus-Lautsprecher Heptagonal 2027
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1929–1931
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 7460
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Loudspeaker

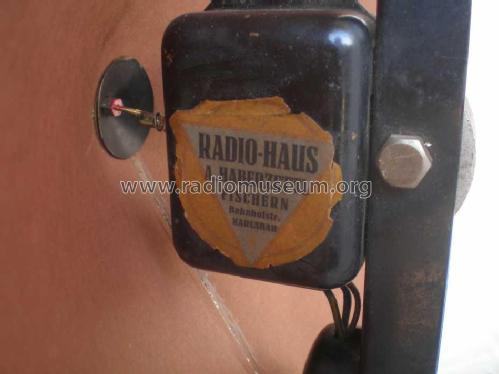

- Magnetic loudspeaker (reed) of high quality (4 magnet poles).
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Konus-Lautsprecher Heptagonal 2027 - Philips; Eindhoven tubes
- Dimensions (WHD)
- 330 x 330 x 200 mm / 13 x 13 x 7.9 inch
- Notes
- LS, achteckig mit 3fach Umschalter z.Klangregelung
- Net weight (2.2 lb = 1 kg)
- 0.9 kg / 1 lb 15.7 oz (1.982 lb)
- Price in first year of sale
- 43.00 RM
- Source of data
- Arlt's grosser Radiokatalog 1930 / Radiokatalog Band 1, Ernst Erb
- Mentioned in
- Katalog Radio-Zentrale Prohaska 1930/31 (dick)
