204 U H (204U)
Philips - Schweiz
- Country
- Switzerland
- Manufacturer / Brand
- Philips - Schweiz
- Year
- 1942–1944
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13335

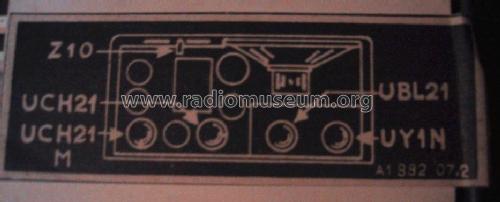

Typenschild zu Modell mit Bild ID 481500

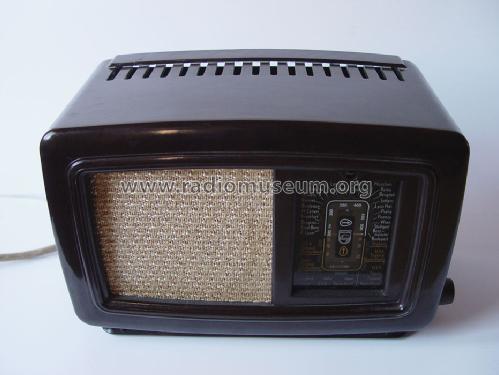

Gehäusefarbe und Skala nicht original.

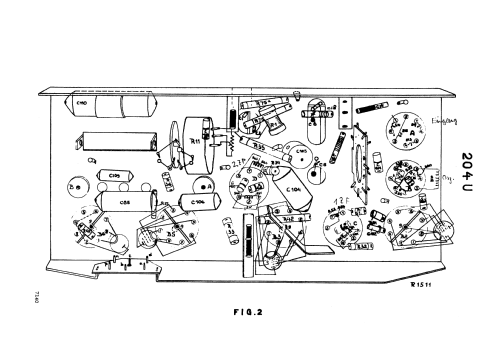

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 110/220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13.4 cm = 5.3 inch
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 204 U H - Philips - Schweiz
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 245 x 160 x 130 mm / 9.6 x 6.3 x 5.1 inch
- Notes
-
Siehe auch weitere Modelle der Philips 204U Reihe
- 204U (B)
- 204U (B)
- 204U -14 (CS)
- Aachen Super 204U (D)
- 204U (NL)
- 204U -00 -20 -32 (NL)
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Price in first year of sale
- 248.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
- Literature/Schematics (3)

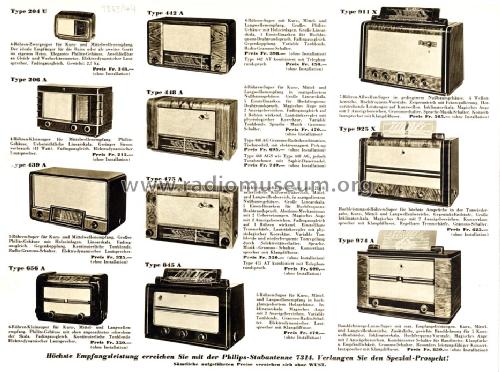

- Philips Folder for 1943/1944.
