• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1943 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135775

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); Export model

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Bakelite case

• from Radiomuseum.org

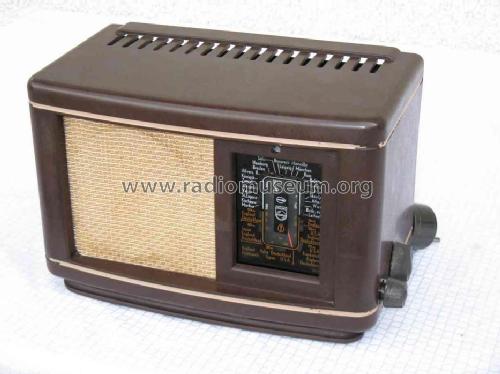

• Model: 205U-07 - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 245 x 170 x 135 mm / 9.6 x 6.7 x 5.3 inch

• Notes

• Siehe auch Philips 205U und 205U-10.

  Die Modelle 205U im Bakelitgehäuse sind Exportmodelle, insbesondere für Skandinavien und Süd-Ost-Europa. Sie basieren auf der Schaltung des Philips 204U, jedoch mit einem Saugkreis im Antennenkreis.

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• Literature/Schematics (1)
• Radio Historisch Tijdschrift, Nr. 166, September 2018

• Author
• Model page created by Alois Steiner. See "Data change" for further contributors.
