• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1945/1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 302054

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• UCH21 UCH21 UBL21 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• AC/DC-set / 125/220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm

• Material
• Bakelite case

• from Radiomuseum.org

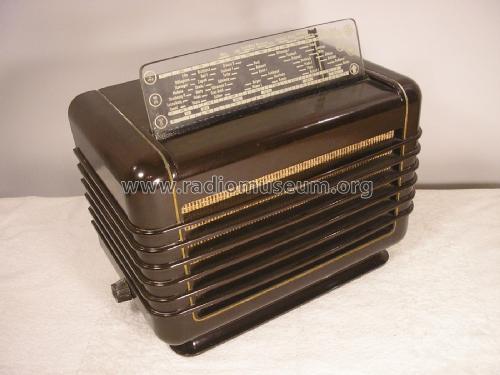

• Model: 209U -40 - Philips; Eindhoven tubes

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 285 x 185 x 155 mm / 11.2 x 7.3 x 6.1 inch

• Notes

• Modell 209U -40 ist eine approbationsfähige Ausführung (mit Sicherheits-Netzsteckeranschluss).

  Nachdem Widerstand R37 kurzgeschlossen ist, kann das Modell mit 110 / 200 V (AC/DC) gespeist werden.

  Siehe die Übersicht mit allen 209U-Modellen am Ende dieser Modellseite unter "Dokumenten zu diesem Modell".

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Mentioned in
• Philips Apparatenblad

Übersicht Philips 209U-Modelle

48 KB
