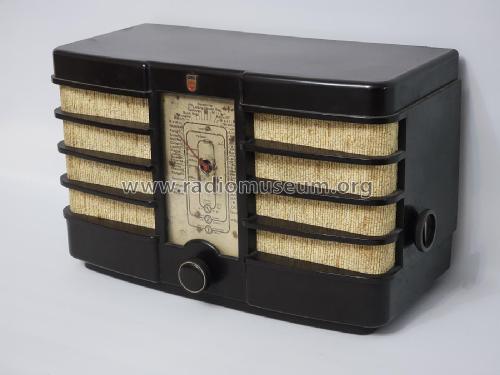

215A

Philips Radios - Deutschland

Data
Forum
Pictures
Collections

  • Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7280
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 128 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 4 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: 215A - Philips Radios - Deutschland
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 420 x 250 x 200 mm / 16.5 x 9.8 x 7.9 inch
  • Notes
  • Dial lamp 8042D (4V 0,5A)
  • Net weight (2.2 lb = 1 kg)
  • 6.9 kg / 15 lb 3.2 oz (15.198 lb)
  • Source of data
  • Radiokatalog Band 1, Ernst Erb
  • Circuit diagram reference
  • Röhren in FS-Bestückungstabellen

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips Radios -: 215A

Threads: 4 | Posts: 13

I have discovered that the circuit/schematic is available from -

www.radiofil.com

This is a French site (in French only), and as far as I understand
is available with many others on CD/ROM's as "Retro Schemas
1,2,3,4,5." however, I think individual schematics may be available
but you would need to email them to clarify this.
Perhaps a French speaking member could help further?
Regards,
                John Turrill.

John Turrill, 18.Oct.06

Weitere Posts (1) zu diesem Thema.

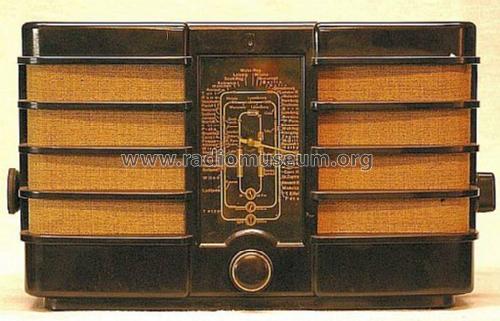

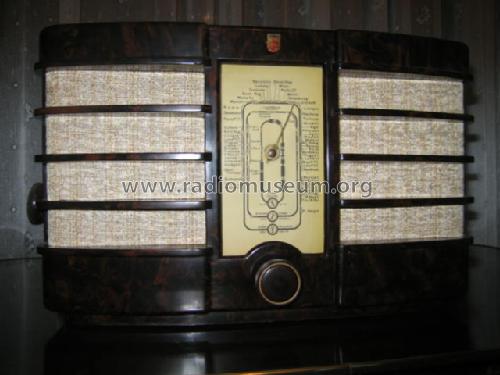

As far as I know the light Skala with dark letters is French, the negative version is from Sweden. regards, Aad

Aad Hoenderdos, 16.Oct.06

Weitere Posts (1) zu diesem Thema.

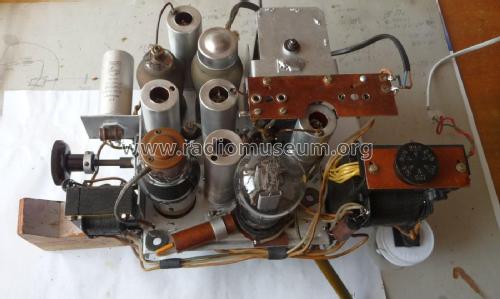

Die auf dem Chassis befindliche Endröhre (unten links) kann nicht die ABL1 sein: Gitterkappe fehlt !

Jacob Roschy, 17.Jan.06

Weitere Posts (7) zu diesem Thema.

Liebe Sammlerfreunde,
ich besitze das abgebildete Radio. Jedoch nach dem Typenschild auf der Rückwand, kann nur original sein, steht als Type "4-39A", Serien- Nr. 10584. Sonst ist alles identisch dem 215A, so wie ich sehe.
Ich vermute, daß es eine holländische Fertigung des deutschen 215A ist.
MfG

Herbert Heintges
