- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1938/1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 119164
-
- Brand: Deutsche Philips-Ges.
Pieter's old radios
Pieter's old radio

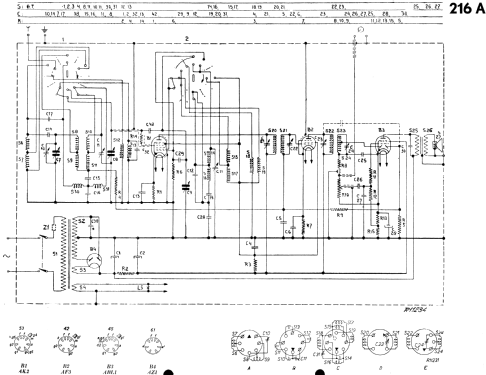

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 128 kHz
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch
- Power out
- 9 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: 216A - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 420 x 245 x 200 mm / 16.5 x 9.6 x 7.9 inch
- Notes
- Bands: LW = 708···2000 m, MW = 198···585 m, SW = 16,7···51 m. Similar chassis to 215A.
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Source of data
- -- Collector info (Sammler)
- Author
- Model page created by Bruno Gandolfo-Canepa. See "Data change" for further contributors.
