21CT319
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1958
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 216089

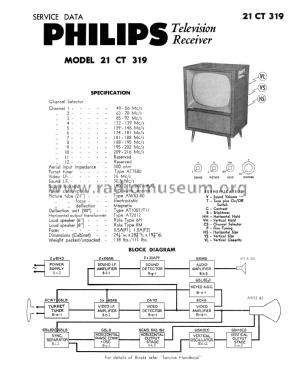

Philips model 21CT319 from service manual.
- Number of Tubes
- 19
- Valves / Tubes
- 6CW7 6BL8 6BX6 6BX6 6BX6 6CK6 6BX6 6BX6 6BM8 6BL8 6BL8 6BM8 6BL8 6CM5 6R3 1S2 6N3 6N3 AW53-80
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 190; 215; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21CT319 - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 24.25 x 28.63 x 19.88 inch / 616 x 727 x 505 mm
- Notes
-
53 cm television set tunes the 10 then standard Australian VHF channels.
Cabinet finishes available in Maple, Rose Mahogany, Walnut & Cedar Brown
- Net weight (2.2 lb = 1 kg)
- 111 lb (111 lb 0 oz) / 50.394 kg
- Price in first year of sale
- 250.95 AUS £
- Literature/Schematics (1)
- - - Manufacturers Literature (Philips Service Data, Oct 1958.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (L.J. Series Vol. 1, 1962 & Vol. 2, 1967, Page P7.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
