21CT335
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 216054
Philips model 21CT335 from service manual.
Service manual cover.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6CW7 6BL8 6BX6 6BX6 6BX6 6CK6 6BX6 6BX6 6BM8 6BL8 6BL8 6BM8 6BX6 6CM5 6R3 1S2 6N3 6N3 AW53-80
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 190; 215; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21CT335 - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 24 x 28.75 x 16.5 inch / 610 x 730 x 419 mm
- Notes
-
Philips 335 - 21"

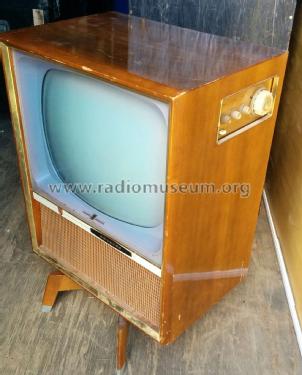

A 21" console TV receiver having 90º electrostatic focus tube, 18 valves and 5 diodes. Cabinet on swivel base, in cedar brown, maple, walnut or rose mahogany finishes. Features: Aerial input 300 ohms. Ten channel cascode turret tuner. Keyed AGC, balanced line-hold automatically locks horizontal picture in spite of signal or mains variation. Speakers: Two front-mounted, one 8", one 6" crossover network. Controls are located top right-hand side. (FROM MINGAY'S PRICE SERVICE)
See also Fleetwood Model F21C353.
- Net weight (2.2 lb = 1 kg)
- 112 lb (112 lb 0 oz) / 50.848 kg
- Price in first year of sale
- 240.45 AUS £
- Mentioned in
- Mingay's Price Service (Feb 1959 to Feb 1960.)
- Literature/Schematics (1)
- -- Original-techn. papers. (Philips Service Data for Models 21CT335, 21CT337 & 21TT339, June 1959.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Television Service Manual 2nd edition 1961, L.J. Series 1962 & 1967, Page P9.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
