21CT337
Philips Australia
- Country
- Australia
- Manufacturer / Brand
- Philips Australia
- Year
- 1959/1960
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 216090
Philips model 21CT337 from service manual.

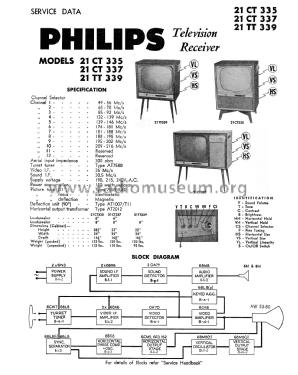

Service manual front cover.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6CW7 6BL8 6BX6 6BX6 6BX6 6CK6 6BX6 6BX6 6BM8 6BL8 6BL8 6BM8 6BX6 6CM5 6R3 1S2 6N3 6N3 AW53-80
- Number of Transistors
- Main principle
- Superhet with RF-stage; ZF/IF 36000/30500 kHz; 2 AF stage(s)
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 190; 215; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21CT337 - Philips Australia
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 34 x 22 x 16.5 inch / 864 x 559 x 419 mm
- Notes
-

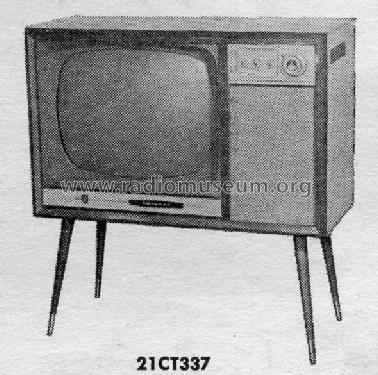

Philips 337 - 21"
A 21" lowboy TV receiver having Philips 90º aluminised electrostatic-focus tube, 18 valves and 5 diodes. Cabinet finished in cedar brown, walnut, maple or rose mahogany. Features: aerial input 300 ohms. Ten channel cascode tuner. Three high-gain wide-band vision IF stages, two sound IF stages. Ratio detector. Keyed AGC. Balanced line-hold. Front-mounted speakers - one 8", one 6". Controls are front-mounted, illuminated channel indicator on bottom edge of screen mask. Automatic "spot" eliminator. Power consumption 150 watts approximately. (FROM MINGAY'S PRICE SERVICE)
Height with legs 35½". Without legs 22".
- Net weight (2.2 lb = 1 kg)
- 110 lb (110 lb 0 oz) / 49.940 kg
- Price in first year of sale
- 194.25 AUS £
- Mentioned in
- Mingay's Price Service (Aug 1959 & Feb 1960.)
- Literature/Schematics (1)

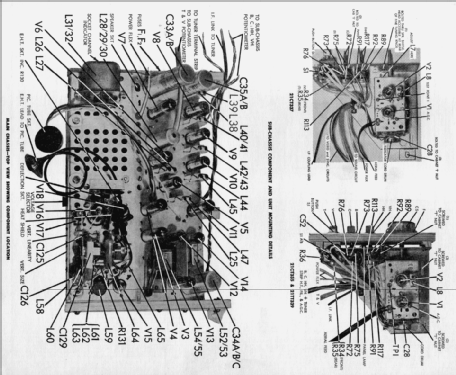

- -- Original-techn. papers. (Philips Service Data for Models 21CT335, 21CT337 & 21TT339, June 1959.)
- Literature/Schematics (2)
- J.R. Publications Television Service Handbook (Television Service Manual 2nd edition 1961, L.J. Series 1962 & 1967, Page P9.)
