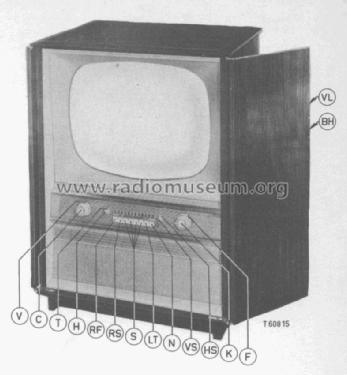

21CX242A /01
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1957 ??
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 239910
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 25
- Valves / Tubes
- PCC88 PCF80 UF80 UF80 UF80 UF80 PCF80 PCF80 PL84 PL84 UF80 UF80 UF80 UF80 PL83 UCC85 PCF80 PCF80 UCC85 PCF80 PL36 PY81 DY87 PCL82 AW53-80
- Main principle
- Superheterodyne (common); 2 AF stage(s)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 21CX242A /01 - Philips; Eindhoven tubes
- Shape
- Console, Lowboy (legs < 50 %).
- Dimensions (WHD)
- 630 x 940 x 540 mm / 24.8 x 37 x 21.3 inch
- Notes
-
- Transformerless audio output stage.
- 4 standard receiver: (manual switching)
- European 625 lines; FM sound; negative video sync.
- Belgian 625 lines; AM sound; positive video sync.
- Belgian 819 lines; AM sound; positive video sync.
- French 819 lines; AM sound; positive video sync.
- Type of loudspeakers: 1 x AD3800BM; 1 x 9758B; 1 x 49-242-42; 1 x 49-242-85.
- VHF channels: E2-E11; F6; F8a.
- No UHF.
- Remote control unit AT6320-01.
