- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1998
- Category
- Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
- Radiomuseum.org ID
- 291684

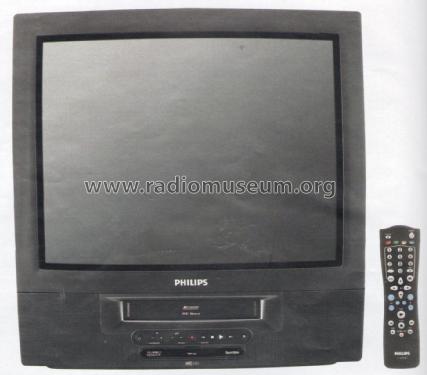

Foto Catalogo Philips
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Details
- Video-Taperecorder/-Player; Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 10 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 21PV688 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 507 x 490 mm / 19.7 x 20 x 19.3 inch
- Notes
-
Combi TV 21" Video, blackline/contrast plus/smart picture, autostore, VHF/UHF 99 presets, Hyperband channel S, automatic channel installation, OSD, multi F system, HI FI stereo, 10 W musical power, 2 speakers, Turbo deck 4 heads video and 2 audio, turbo drive, automatic heads cleaning, turbo deck rewind time 100 sec, studio picture control, NTSC playback, fast forward reading, reverse reading, rear image search, viss, teletext, sleep timer wake up, child lock, vps, pdc, front A/V and hearphone, scarts, remote control.
- Net weight (2.2 lb = 1 kg)
- 23.6 kg / 51 lb 15.7 oz (51.982 lb)
- Mentioned in
- - - Manufacturers Literature (Catalogo Philips 98/99, page 50)
- Author
- Model page created by Manuel Albano Neves. See "Data change" for further contributors.
