• Country
• Argentina

• Manufacturer / Brand
• Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

• Year
• 1957 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 182313

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 23

• Valves / Tubes

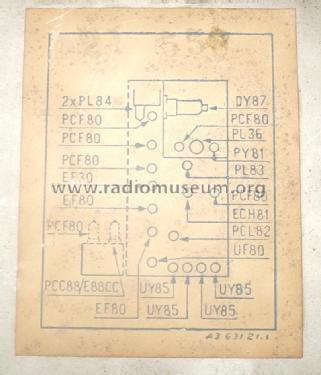

• PCC88 PCF80 UF80 EF80 PL83 ECH81 PL36 PY88 DY87 PL84 PCL82 UY85 AW53-80

• Main principle
• Superhet with RF-stage; ZF/IF 45750 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• AC/DC-set / 90; 110; 127; 145; 165; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 21TAL100U - Philips Argentina, FAPESA,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 6400 x 6200 x 5000 mm / 252 x 244.1 x 196.9 inch

• Notes
• Canales VHF 2 a 13 - CRT 90 grados. Each tube listed only once per type.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• -- Original-techn. papers. (Manual de circuitos de Televisión-Philips Service Argentina)

• Author
• Model page created by Aldo Canepa. See "Data change" for further contributors.

• Other Models

• Here you find 274 models, 168 with images and 198 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
