• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 318443

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• PCC88 PCF80 EF80 PCF80 PCF80 PCF80 PCF80 PL36 PY81 DY87 PCL82 EF80 PCL82 PY82 PY82 AW53-80

• Main principle
• Superhet with RF-stage; ZF/IF 42500 kHz

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Verona 21TI183A /02 /03 - Philips Italy; Milano MI

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 590 x 450 mm / 19.7 x 23.2 x 17.7 inch

• Notes

• Philips S.p.A. 21TI183A /02

  TV B/N 21" con sintonizzatore rotativo di VHF.

  FI: 1ª 44.0 MHz, 2ª 42,5 MHz y 3ª 45,2 MHz.

  • Tubo catodico con deflessione diagonale di 90° tipo AW 53-80;
  • Altoparlante tipo AD3800M;
  • Regolatore di tono per alti e bassi;
  • Consumo 135 W;
  • 12 canali compreso UHF.

• Price in first year of sale
• 180,000.00 ITL

• Mentioned in
• Catalogo ANIE (1958/59 no.4 p.264)

• Literature/Schematics (1)

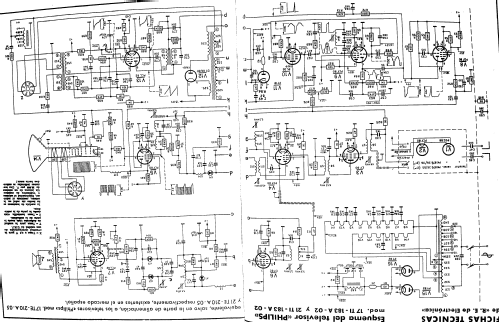

• -- Schematic

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
