• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1958

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 202238

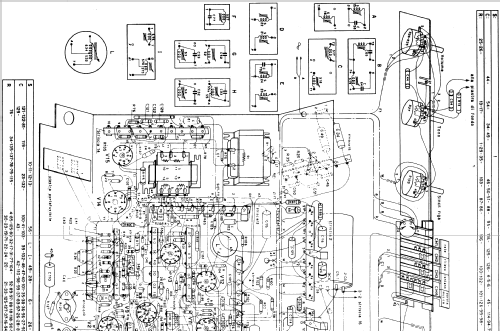

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 20

• Valves / Tubes
• PCC88 PCF80 PCF80 EF80 6AF4A PCF80 PL84 EF80 EF80 PCF80 EF80 ECH81 PCF80 PCF82 PY82 PY82 PL36 PY81 DY87 AW53-88

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Peschiera 21TI194A /02 - Philips Italy; Milano MI

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 510 x 600 x 425 mm / 20.1 x 23.6 x 16.7 inch

• Notes

• Power consumption 155 W.

  Altoparlante tipo AD3800 da 6W 5 ohm

  Tubo R.C. tipo AW 53-88 da 21" e 110° di Deflessione.

• Price in first year of sale
• 200,000.00 ITL

• Mentioned in
• Catalogo ANIE (1958/59 no.4 p.264)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Alessandro Staffoni. See "Data change" for further contributors.
