22AC757 /02B

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1980 ??
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 186326

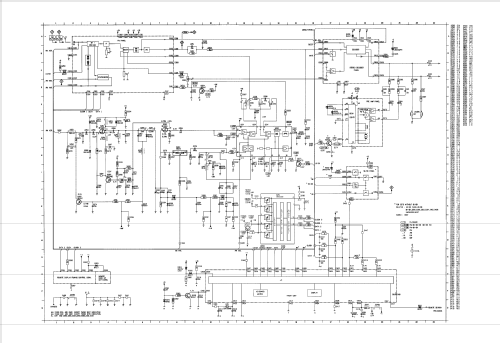

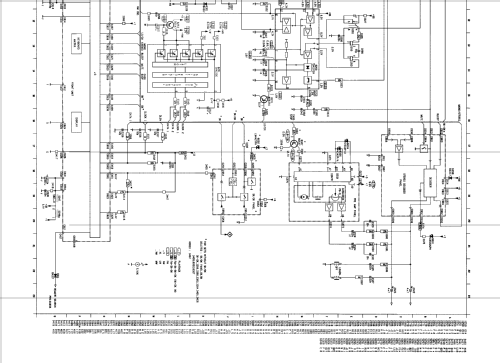

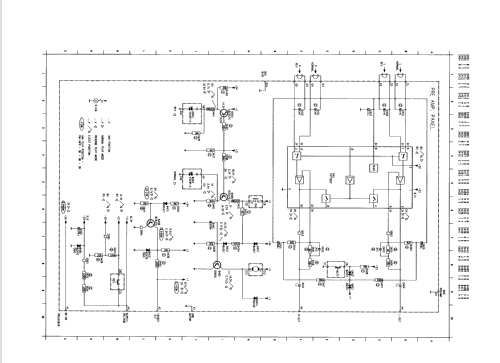

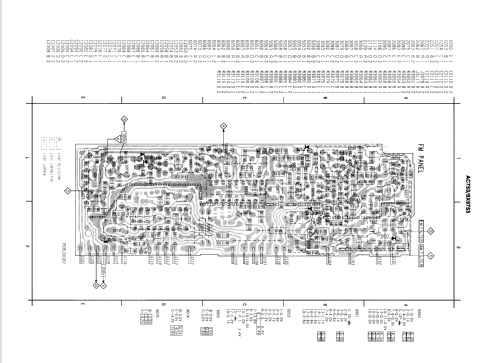

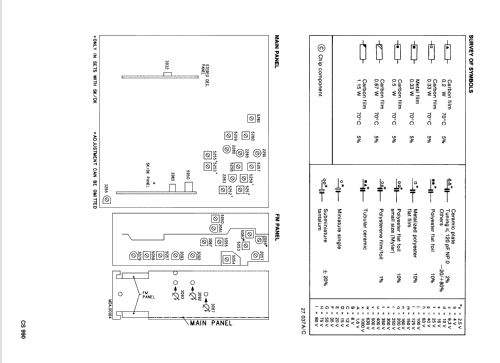

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 25
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage and/or dry batteries / 14,4 + 3,4 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 12 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 22AC757 /02B - Philips; Eindhoven tubes
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 180 x 51 x 149 mm / 7.1 x 2 x 5.9 inch
  • Notes
  • Stereo output 2 x 6 W.
    Memory backup battery of 3,4 V.
    Only one semiconductor listed for each type.

    The Philips Cassette auto radio model 22AC757 was sold in the following versions: /02, and /02B. When uploading pictures, please do also one with the plate, including the readable subversion. We have uploaded the complete documentation to each model and you should search into it looking for your particular model data variations.
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
