- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1980 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 204847

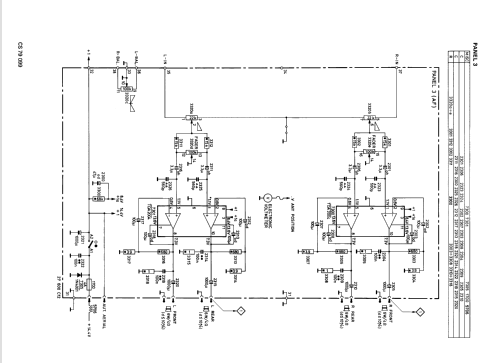

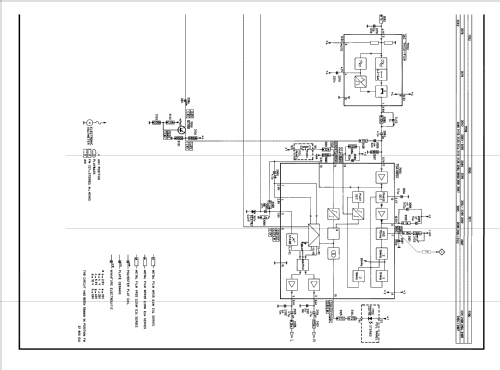

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 14,4 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 24 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: 22AC807 /00 - Philips; Eindhoven tubes
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 180 x 51.5 x 149 mm / 7.1 x 2 x 5.9 inch
- Notes
- Stereo output 4x 6W.
Six (6) pre-selection knobs: 4x FM; 1x LW; 1x MW.
The Philips Cassette auto radio model 22AC807 was sold in the following versions: /00, /19 and /62. When upload pictures, please do also one with the plate, including the readable subversion. We will upload the complete documentation to each model and you should search into it looking for your particular model data variations.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Ramon Gancedo. See "Data change" for further contributors.
