- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1977
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 205308
From manual.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 23
- Semiconductors
- BD434 BC548 BC549 BC338 BF324 BF241 BF495 AA119 BZX75 BB117 BA315 BAX13 OF173 BZX79 TDA1005 TDA1001 TDA1006
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 14.4 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 10 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

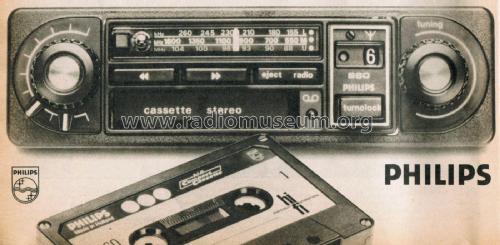

- Model: 22AC860 /85 - Philips; Eindhoven tubes
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 179.4 x 43.8 x 136 mm / 7.1 x 1.7 x 5.4 inch
- Notes
-
Stereo output 2x 5W @4Ω.

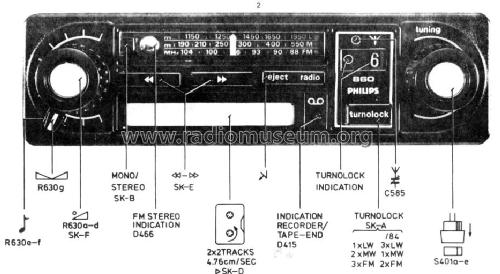

Turnolock to automatically search 6 stations. PLL Stereo decoder.
23 transistors, 17 diodes, 3 zener diodes and 3 ICs listed once per type and not all.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- Free Schematic
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
