- Country
- Spain
- Manufacturer / Brand
- Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona
- Year
- 1976
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 170076

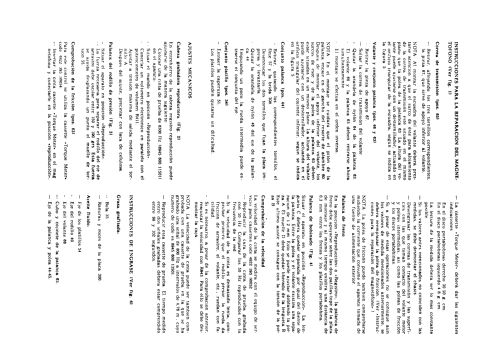

sacada del manual

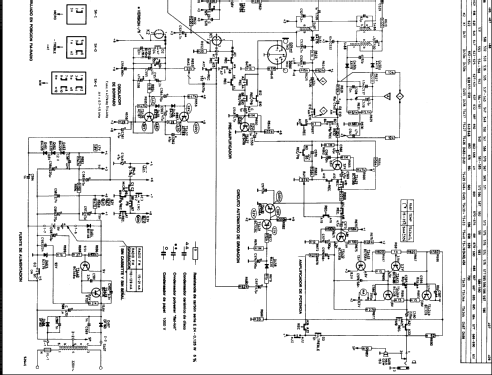

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452 or 460/1070 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 110; 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 22-RR-200 [/00/05/19/50] - Philips Ibérica, COPRESA,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 185 x 85 mm / 11.8 x 7.3 x 3.3 inch
- Notes
- FI/ZF: /00/05/50= 452kHz; /19= 460kHz. FM band 87,5-104 MHz. /05= 87,5-108 MHz.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
