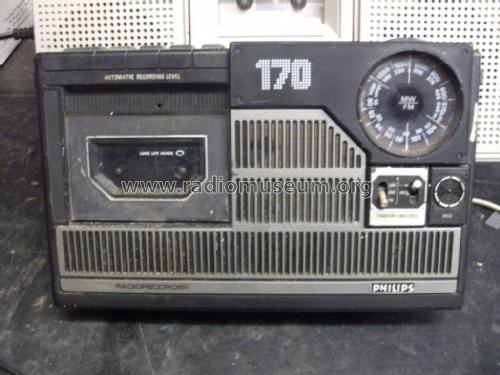

Radiorecorder 170 22AR170 /19 /59
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1976–1978
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 76438

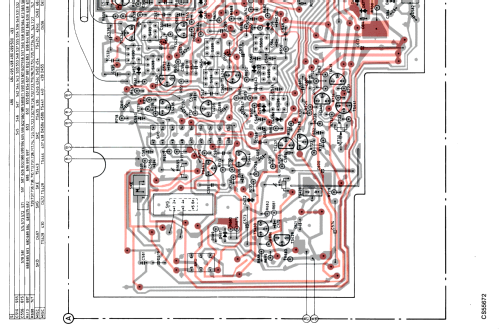

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 19
- Semiconductors
- BF494 BF495 BC548 BC549 BC558 BC338 BC328 BD136 BAV10 BA316 BA315 AA119 OA95 BZX75 BY206 BY164
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details

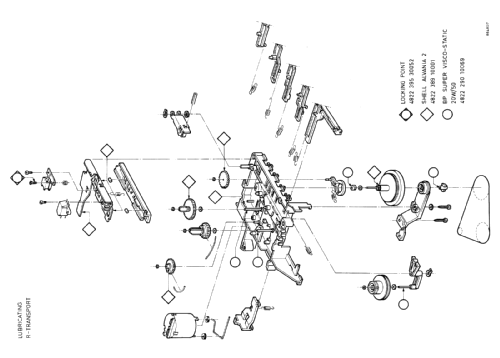

- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 127; 220 / 5 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
- Power out
- 0.5 W (1 W max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Radiorecorder 170 22AR170 /19 /59 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 286 x 180 x 74 mm / 11.3 x 7.1 x 2.9 inch
- Notes
-
Radiorecorder mit runder Abstimmskala. Wellenbereiche: FM 87.5 - 104 MHz, MW 520 - 1605 kHz.
Cassetten-Teil mit elektronischer Motorregelung. Eingebautes Elektret-Mikrofon. Schulter-Trageriemen.
Halbleiter 1x per Type gelistet.
Das Modell 22AR170 (ohne Suffix) wird im Radiokatalog Erb unter Philips Österreich geführt.
Siehe auch Radio-Recorder Modell SX8170.
- Net weight (2.2 lb = 1 kg)
- 1.6 kg / 3 lb 8.4 oz (3.524 lb)
- Source of data
- Handbuch VDRG 1977/1978 / Radiokatalog Band 2, Ernst Erb
