22GF443
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1969
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 233479
-
- Brand: Deutsche Philips-Ges.

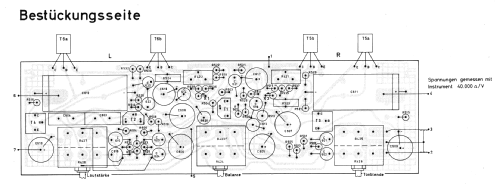

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 8
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Rec.Player+Audio.Amp+LS
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220; 240 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 5 W (max.)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 22GF443 - Philips Radios - Deutschland
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 354 x 303 x 170 mm / 13.9 x 11.9 x 6.7 inch
- Notes
-
Plattenwechsler mit Stereoverstärker 2x 2,5W und zwei separat aufstellbaren Lautsprechern, Asynchronmotor mit Reibrad, 50/60Hz umschaltbar durch Wechsel der Motorstufenachse, automatischer Aufsatzpunkt der Nadel für 17, 25 und 30cm Platten, Tonkopfsystem Keramik oder Kristall, Nadel Diamant oder Saphir.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Manfred Rauschen. See "Data change" for further contributors.
