• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1967

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 171574

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors
• BC149 BC148 AC128 AC187 AC188 BA114

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage

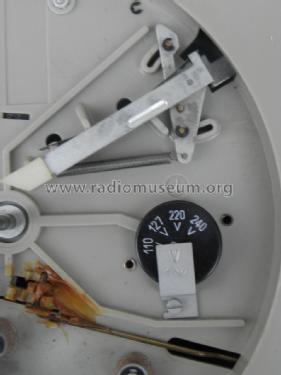

• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

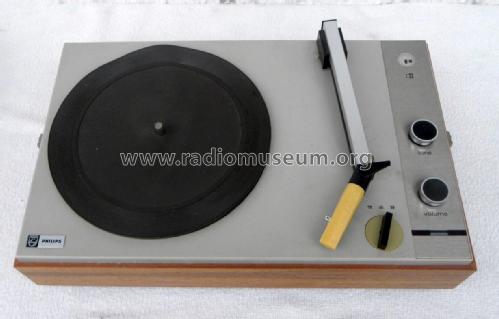

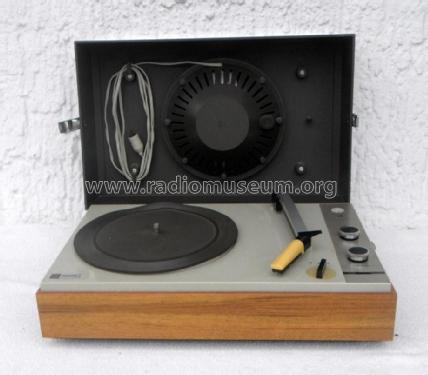

• Model: 22GF632 - Philips Radios - Deutschland

• Shape

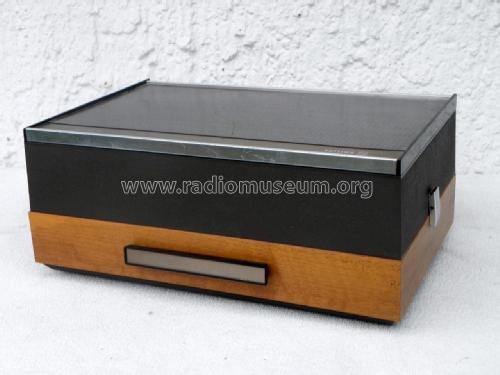

• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 360 x 240 x 145 mm / 14.2 x 9.4 x 5.7 inch

• Notes
• Mono-Plattenspieler mit Verstärker.
  33; 45; 78 U/min.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
